MAIN TECHNICAL PARAMETERS
Caliber (mm): 12.7 x 108

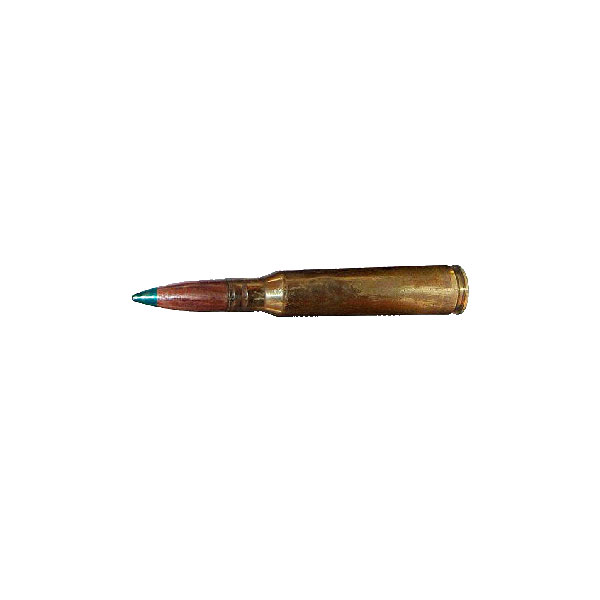

Bullet type: Tracer
Length of cartridge, (mm): 147
Weight of cartridge, (g): Max. 132
Length of bullet, (mm): 64.5
Weight of bullet, (g): 44
Length of cartridge case, (mm): 108
Weight of cartridge case, (g): 67
Material of cartridge case: Brass (or substitute)
Primer type: Fulminate
Primer weight, (g): 1.1
Primer length, (mm): 4.15
Bullet: Bullet jacket - Cooper washer steel strip, Steel core, Bullet Liner - Lead antimony, Bullet incendiary composition - Borax, Bullet tracer composition - Tracer
Propelling charge type: NCD powder
Propelling weight, (g): 16.5
Max average bullet velocity, V25, (m/s): Max. 865
Max. average chamber pressure of powder charges, (MPa): Max. 310
Tracer visibility, (m): 1 000
Operational temperature range, ( °C): from minus 50 to 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 20

PACKING
1 (one) metal sealed (airtight) box: 85 cartridges
1 (one) wooden case for transportation: 2 (two) metal boxes
Totally: 170 cartridges in 1 (one) wooden box

Wooden case dimensions:
Overall, (mm): 480 x 340 x 155
Gross weight, (kg): 29
Case volume, (m3): 0.025
Class of explosion hazard: UN 0012, 1.4S

Note: The manufacturer can change the packing

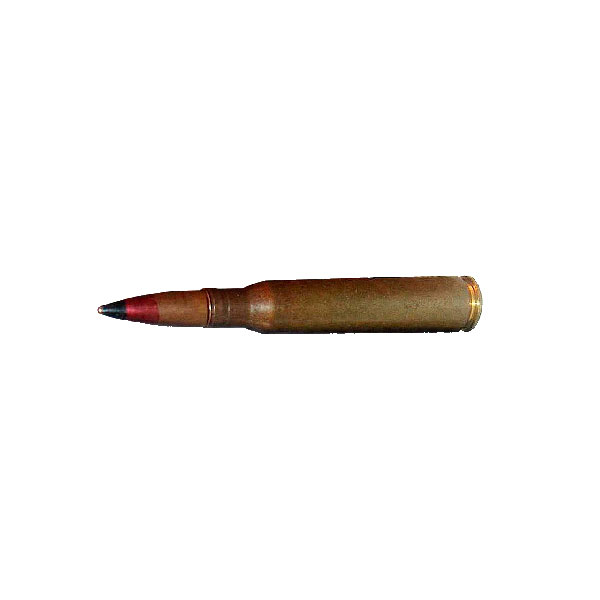

12.7 x 108 mm cartridge B-32 with bullet type Amour-Piercing Incendiary (API)
