14.5 x 114 mm cartridge with bullet type Ball

MAIN TECHNICAL PARAMETERS
Caliber (mm): 14.5 x 114
Bullet type: FMJ/SC
Length of cartridge, (mm): 155.8
Weight of cartridge, (g): 200
Length of bullet, (mm): 51
Weight of bullet, (g): 64
Length of cartridge case, (mm): 114
Material of cartridge case: Steel/Brass
Primer type: Berdan
Bullet: Bullet jacket - Cladded steel, Mild steel core, Bullet inert composition
Propelling charge type: Single base type 5/7NA or NC 261
Max average bullet velocity, V25, (m/s): 980 ÷ 995
Max. average chamber pressure of powder charges, (MPa): Max. 330
Penetrate of steel at an incidence of 60 ° at a range of 100 m, (mm): 40
Accuracy at 300 m: The average radius R50 ≤ 20 cm
Operational temperature range, ( °C): from minus 50 to 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 20

PACKING
1 (one) metal sealed (airtight) box: 40 cartridges
105 metal boxes: 1 (one) wooden pallet
Totally: 4 160 rds per pallet
Pallet dimensions, (mm): 1 120 x 885 x 850
Gross weight, (kg): 897
Class of explosion hazard: UN 0339, 1.4C

Note: The manufacturer can change the packing

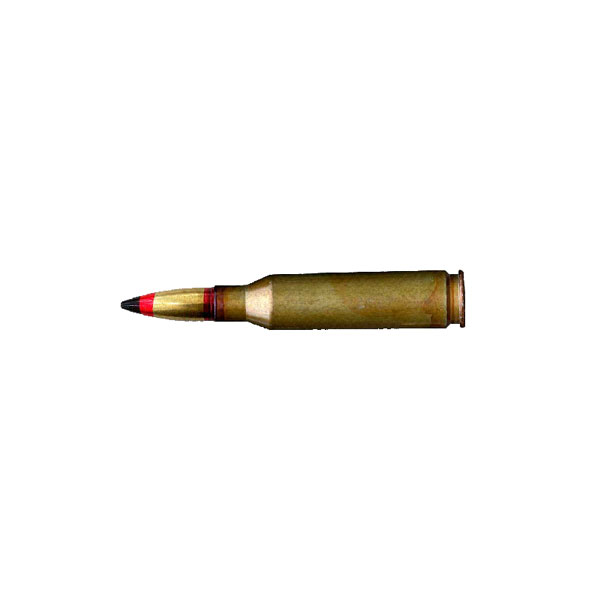

14.5 x 114 mm cartridge with B-32 bullet type Amour-Piercing Incendiary (API)

MAIN TECHNICAL PARAMETERS
Caliber (mm): 14.5 x 114
Bullet type: API
Length of cartridge, (mm): 156
Weight of cartridge, (g): 192
Weight of bullet, (g): 64
Length of cartridge case, (mm): 114
Material of cartridge case: Steel (or substitute)
Primer type: Berdan
Bullet: Bullet jacket - FMJ, Hardened steel core, Bullet incendiary composition - Thermit, Propelling charge type, Single base type 5/7NA or NC 261
Max average bullet velocity, V25, (m/s): 1 000
Max. average chamber pressure of powder charges, (MPa): Max. 330
Accuracy Rs, (cm): Max 20 cm at 300 m
Amour penetration at 500 m of RHA at 90°, (mm): 32
Operational temperature range, ( °C): from minus 50 to 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 20

Note: The manufacturer can change the packing

14.5 x 114 mm cartridge with BZT bullet type Amour-Piercing Incendiary Tracer (API-T)

MAIN TECHNICAL PARAMETERS
Caliber (mm): 14.5 x 114
Bullet type: API-T
Length of cartridge, (mm): 187
Weight of cartridge, (g): 192
Length of bullet, (mm): 59.3 ÷ 61.3
Weight of bullet, (g): 59.56
Length of cartridge case, (mm): 114
Material of cartridge case: Steel (or substitute)
Primer type: Berdan
Bullet: Bullet jacket - FMJ, Steel core, Bullet incendiary composition - Borax, Bullet tracer composition - Tracer
Propelling charge type: Single base type 5/7 NA
Max average bullet velocity, V25, (m/s): Max. 1 000
Max. average chamber pressure of powder charges, (MPa): Max. 330
Amour penetration at 500 m of RHA at 90°, (mm): 32
Tracer visibility, (m): 2 000
Operational temperature range, ( °C): from minus 50 to 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 20

Note: The manufacturer can change the packing
