152 mm HE ER-HB
The product was originally designed for 152 mm self-propelled gun howitzer DANA (SpGH-77), however this ammunition can be used with any 152 mm howitzer which is designed to withstand the pressure generated by the ammunition. The ammunition can be used against infantry, lightly armoured targets as well as against structures.
MSDA offers its customer unique solution of extended range of 152 mm ammunition which ensures the firing range of 20 km for boat tail (BT) projectile and 25.5 km for base bleed (BB) projectile. All projectiles for our 152 mm ammunition are supplied with PD fuzes of our own design – KZ 88M. The fuze fulfils all NATO standards requirements for 152mm ammunition.
TECHNICAL CHARACTERISTICS
| Technical data | |
| Projectile weight with fuze | 43.56 kg |
| Projectile length without fuze | 778 mm |
| Projectile length with fuze | 838 mm |
| Muzzle velocity | 695 m.s-1 |
| Max. gas pressure | 230 MPa |
| Temperature range | -40to+50 °C |
| Fuze | KZ – 88M |

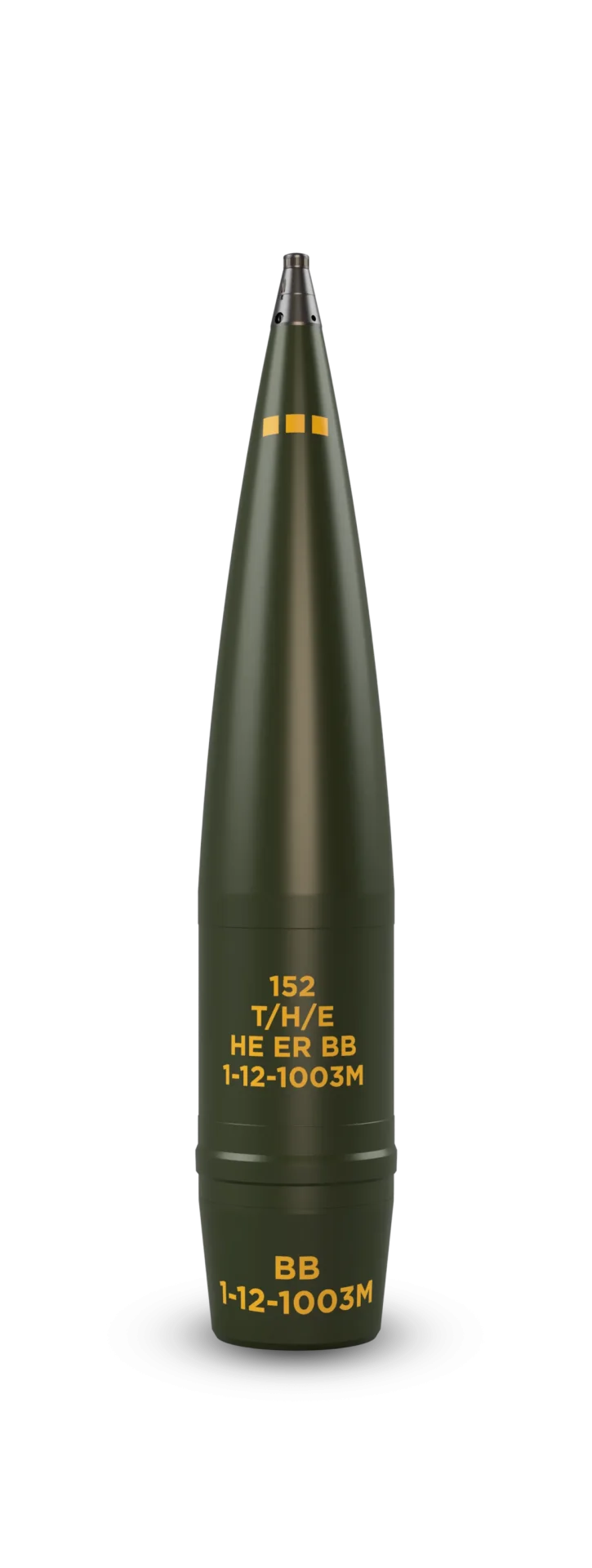

152 mm HE ER-BB
The product which was originally designed for 152 mm self-propelled gun howitzer DANA (SpGH-77). However this ammunition can be used with any 152 mm howitzer which is designed to withstand the pressure generated by the ammunition. The ammunition can be used against infantry, lightly armoured targets as well as against structures.
MDSA offers its customer unique solution of extended range of 152 mm ammunition which ensures the firing range of 20 km for boat tail (BT) projectile and 25.5 km for base bleed (BB) projectile. All projectiles for our 152 mm ammunition are supplied with PD fuzes of our own design – KZ 88M. The fuze fulfils all NATO standards requirements for 152mm ammunition.
TECHNICAL CHARACTERISTICS
| Technical data | |
| Projectile length with fuze | 836 mm |
| Projectile length without fuze | 778 mm |
| Projectile weight with fuze | 43,56 kg |
| Type of high explosive | TNT |
| High explosive weight | 7,9 kg |
| Packing | |
| Number of pieces in wooden packaging | 1 pcs 152 mm HE ER BB +1 ks P740 |
| Dimensions of wooden packaging | 990 x 440 x 250 mm |
| Weight of filled packaging | 80 kg |
| Number of wooden filled packaging per pallet | 1000 x 900 x 1410 mm |
| Weight of filled pallet | 823 kg |
