40mm Round ARDG-40

The 40 mm Smoke Grenade ARDG-40 provides effective screening action against enemy troops.

The grenade has delayed action timer device ensuring smoke start at distance from muzzle 200m.

The grenade is effective both against visual and infrared devices.

The ammunition is designed for use with the following grenade launchers:

  • GP-25 under-barrel grenade launcher
  • GP-30 under-barrel grenade launcher
  • RG-6 and â€Å“ AVALANCHE ” revolver grenade launchers

The ammunition is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40mm

Packaging

  • 66pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 41kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

Technical specifications

  • Round Length: 150mm
  • Operational Temperature min: -50°c
  • Operational Temperature max: +50°c
  • Shelf Life: 5
  • Operation Range: 200m
  • Weight of Round: 260g



40mm Round ARFG-25 AB

The 40 mm Bouncing Air Burst Grenade ARFG-25 AB provides effective action against enemy troops in open terrain or in light shelters at distance of up to 400 m.

At meeting the target the fuze initiates the ejecting charge and the grenade bounces upwards. The grenade bursts at height from 0,5m to 1,5m. The air-burst of the grenade provides more effective distribution of the splinters and increases their efficiency over 2 times compared to normal VOG-25 grenade.

The ammunition is designed for use with the following grenade launchers:

  • GP-25 and GP-30 under-barrel grenade launchers mounted on AK-47 and AK-74 assault rifles
  • GP-95 under-barrel grenade launcher mounted on 9A-91 compact assault rifle
  • RG-6 and â€Å“ AVALANCHE ” revolver grenade launchers

ARFG-25 AB is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40mm

Fuze Type

  • VMC-AB / VMC-MP

Technical specifications

  • Round Length: 122mm
  • Time of Self-Destruction: 14 - 19s
  • Operational Temperature min: -50°c
  • Operational Temperature max: +50°c
  • Arming Distance: 10 - 40m
  • Shelf Life: 10
  • Muzzle Velocity: 76.5m/s
  • Operation Range: 400m
  • Jump Height: 0,5 to 1,5
  • Primer: kvm-3
  • Filling Type: a-ix-1 (rdx)
  • Propellant Type: p-200
  • Grenade Body: Steel
  • explosivefilling: 42g
  • Weight of Round: 293g



40mm Round ARFG-25P (VOG-25P)

40mm ARFG-25P Air Burst Bouncing High Explosive Grenade with Self Destruction (ABHE-SD) is intended to defeat enemy troops in open terrain or in light shelters at distance of up to 400 m with increased fragments efficiency. When the grenade meets the target, the fuze ejects the HE-FRAG charge in the air and ensures its Air Burst at height 0.5 to 2.5m. The ammunition features 7m Defeat Radius and increased fragments efficiency against prone and entrenched targets. The grenade has Air Burst Fuze with Self Destruction.

Packaging

  • 66pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 41kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case
Weapon Systems (40mm Hand Held Grenade Launchers):
  • GP-25
  • GP-30
  • RG-6 Revolver GL
  • ARCUS-30 UBGL

Fire Specifications

  • caliber: 40mm

Fuze Type

  • AR-725P / VMC-AB Air Burst Bouncing Fuze with Self-Destruction

Technical specifications

  • Round Length: 115.87mm
  • Time of Self-Destruction: 14 - 19s
  • Operational Temperature min: -50°c
  • Operational Temperature max: +50°c
  • Arming Distance: 10 - 40m
  • Shelf Life: 10
  • Muzzle Velocity: 74m/s
  • Operation Range: 400m
  • Weight of Round: 272g

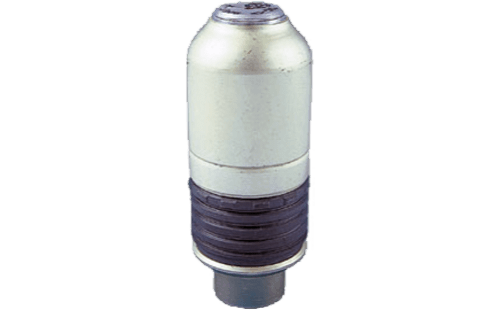

40mm Round VOG-25

The 40 mm High Explosive Grenade VOG-25 provides effective action against enemy troops in open terrain or in light shelters at distance of up to 400 m. The grenade is self-contained type and is fitted with distance-armed, self-destruct fuze.

Packaging

  • 40pcs in Metal Box
  • 3pcs Metal Box in Wooden Case
  • 47kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

The ammunition is designed for use with the following grenade launchers:

  • GP-25 and GP-30 under-barrel grenade launchers mounted on AK-47 and AK-74 assault rifles
  • GP-95 under-barrel grenade launcher mounted on 9A-91 compact assault rifle
  • RG-6 and " AVALANCHE" revolver grenade launchers

VOG-25 is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40mm

Fuze Type

  • VMG-K

Technical specifications

  • Round Length: 102.6mm
  • Safety Wire: 0
  • Arming Distance: 10 - 40m
  • Muzzle Velocity: 76.5m/s
  • Time of Self-Destruction: 14 - 19s
  • Effective Radius: 6m
  • Primer: kvm-3
  • Filling Type explosive: a-ix-1(rdx)
  • Propellant Type: p-200
  • Shelf Life years: 10
  • Max Effective Range: 400m
  • Grenade Body: Steel
  • Operational Temp min: -50°c
  • Operational Temp max: +50°c
  • explosivefilling: 48g
  • Weight of Round: 250g

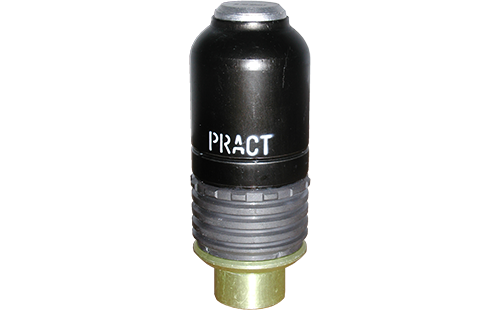

40mm Round VOG-25 PRACT TP

The 40 x 46 mm Target Practice Grenade VOG-25 TP is intended for practice firing at distance of up to 400 m. The projectile is inert and contains no explosive.

The ammunition is designed for use with the following grenade launchers:

Packaging

  • 120pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 47kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

The ammunition is designed for use with the following grenade launchers:

  • GP-25 and GP-30 under-barrel grenade launchers mounted on AK-47 and AK-74 assault rifles
  • GP-95 under-barrel grenade launcher mounted on 9A-91 compact assault rifle
  • RG-6 and â€Å“ AVALANCHE ” revolver grenade launchers

The ammunition is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40mm

Fuze Type

  • Dummy

Technical specifications

  • Round Length: 102.5mm
  • Operational Temperature min: -50°c
  • Operational Temperature max: +50°c
  • Shelf Life: 10
  • Muzzle Velocity: 75m/s
  • Operation Range: 400m
  • Primer: kvm-3
  • Filling Type: inert sulfur mixture
  • Propellant Type: nbpl-10-10
  • Grenade Body: aluminum
  • Weight of Round: 250g
