40x53mm Round AR 383

40x53mm High Explosive Fragmentation Grenade with Self- Destruction AR 383 is intended to defeat enemy troops in open terrain at distance up to 2 200m. AR383 features Self Destruction Fuze and 6m Effective Defeat Radius.

Systems:

  • MK 19
  • HK GMG
  • SB LAG40 Automatic Grenade Launchers

Fire Specifications

  • caliber: 40x53mm

Fuze Type

  • PD, SQ, with Self Destruction

Technical specifications

  • Overall Length: 112mm
  • Time of Self-Destruction: 22 - 26s
  • Arming Distance: 18 - 50m
  • Max Effective Fire Range: 2 200m
  • Operation Temp min: -54°c
  • Operation Temp max: +52°c

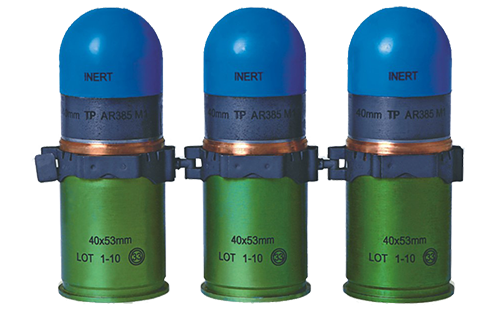

40x53mm Round AR 385 TP/M1

AR385 M1 Target Practice (TP) Grenade isintended for practice firing at distance up to 2 200m and have inert projectiles ballistically matched to AR383 HE-SD Grenade.

Systems:

  • MK 19
  • HK GMG
  • SB LAG40 Automatic Grenade Launchers

Fire Specifications

  • caliber: 40x53mm

Technical specifications

  • Overall Length: 112mm
  • Max Effective Fire Range: 2 200m
  • Operation Temp min: -54°c
  • Operation Temp max: +52°c



40x53mm Round AR 385 TPM-T/M3

AR 385 M3 Target Practice Marking Tracer (TPM-T) grenade is intended for practice firing at distance up to 2 200m and have inert projectiles ballistically matched to AR383 HE-SD Grenade.

Systems:
  • MK 19
  • HK GMG
  • SB LAG40 Automatic Grenade Launchers

Fire Specifications

  • caliber: 40x53mm

Technical specifications

  • Overall Length: 112mm
  • Max Effective Fire Range: 2 200m
  • Operation Temp min: -54°c
  • Operation Temp max: +52°c



40x53mm Round AR 385 TPM/M2

AR 385 M2 Target Practice Marking (TPM) Grenade is intended for practice firing at distance up to 2 200m and have inert projectiles ballistically matched to AR383 HE-SD Grenade.

Systems:
  • MK 19
  • HK GMG
  • SB LAG40 Automatic Grenade Launchers

Fire Specifications

  • caliber: 40x53mm

Technical specifications

  • Overall Length: 112mm
  • Max Effective Fire Range: 2 200m
  • Operation Temp min: -54°c
  • Operation Temp max: +52°c

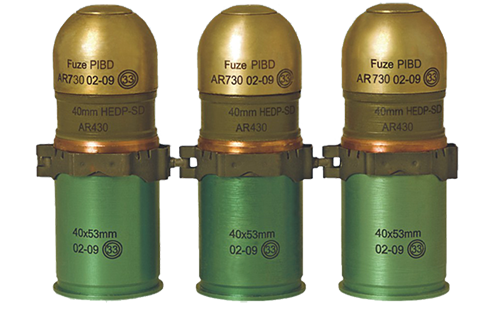

40x53mm Round AR 430

The 40x53mm High Explosive Dual Purpose Grenade with Self-Destruction AR 430 (HEDP-SD) is intended to defeat enemy troops and light armoured vehicles at distance up to 2 200m.

AR430 features Dual Purpose Effects: Armour Penetration 50mm against hardened steel plate (RHA), and Fragmentation Effect with 5m Effective Defeat radius. The grenade features Self-destruction fuze.

Systems:
  • MK 19
  • HK GMG
  • SB LAG40 Automatic Grenade Launchers

Fire Specifications

  • caliber
    40x53mm

Fuze Type

  • PIBD with Self Destruction

Technical specifications

  • Overall Length: 112mm
  • Time of Self-Destruction: 22 - 26s
  • Arming Distance: 18 - 50m
  • Max Effective Fire Range: 2 200m
  • Operation Temp min: -54°c
  • Operation Temp max: +52°c
