60 mm High-Explosive Mortar Bomb (HE)
For 60 mm Smooth-bore Mortars M2, M19, M224, Hirtenberger “Commando”,
Hirtenberger M6-111 and M6-211, MO60 L/C
MAIN TECHNICAL PARAMETERS
Caliber (mm): 60
Mortar bomb type: HE
Maximum Effective Range, (m): 2 554
Length of fuzed mortar bomb, (mm): 312
Barrel length, (mm): 819/1 000
Weight of mortar bomb, (kg): 1.56
Material of body: Cast iron
Explosive filling type: TNT
Weight of explosive charge, (kg): 0.2
Number of charges: 1 + 4 Increment charges
Average muzzle velocity, (m/s): 200
Max. average pressure, Pmaxaver, (kgf/cm2): 450
Fuze type ( Point Detonating): M-6N (or suitable)
Operational temperature range, ( °C): from minus 50 to + 60
Destruction area (m2): 15
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
20 (twenty) mortar bombs: 1 (one) wooden case for transportation
Totally: 20 (twenty) mortar bombs in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 550 x 530 x 270
Gross weight, (kg): 50
Case volume, (m3): 0.079
* Fuzes and increment charges: packed separately
Class of explosion hazard: UN 0321, 1.2Е
Note: The manufacturer can change the packing
60 mm Illumination Mortar Bomb (ILL) For 60 mm Smooth-bore Mortars
MAIN TECHNICAL PARAMETERS
Caliber (mm): 60
Mortar bomb type: ILL
Maximum Effective Range, (m): 2 450
Length with fuze, (mm): 330
Weight (with fuze, w/out increments), (kg): 1.270
Propulsion system: Ignition cartridge + 1 ÷ 4 Increments
Illuminating intensity, (can): Min. 180 000
Illuminating burn time, (s): Min. 25
Stabilized descent speed, (m/s): 2.5
Average muzzle velocity, (m/s): 200
Max. average pressure, Pmaxaver, (kgf/cm2): 414
Fuze type (pyrotechnic time): M-67 (or suitable)
Operational temperature range, ( °C): from minus 40 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
12 mortar bombs: 12 in polyethylene tube each
Totally: 12 mortar bombs in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 520 x 400 x 200
Gross weight, (kg): 27
Case volume, (m3): 0.042
* Fuzes and increment charges: packed separately
Class of explosion hazard: UN 0171, 1.2G
Note: The manufacturer can change the packing

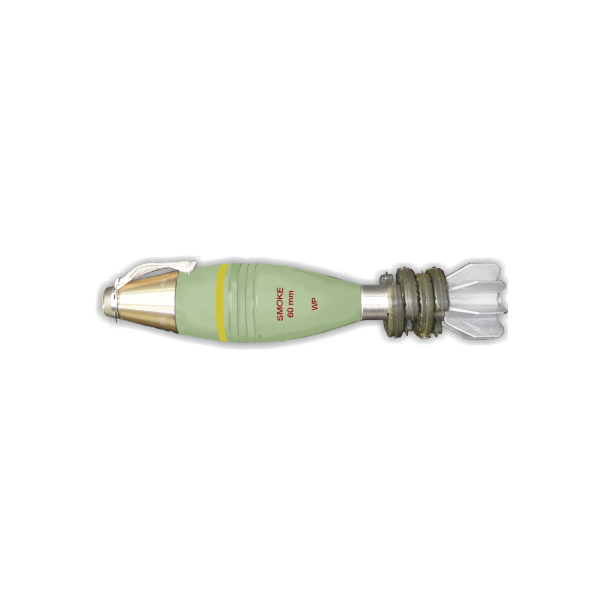

60 mm Smoke Mortar Bomb For 60 mm Smooth-bore Mortars
MAIN TECHNICAL PARAMETERS
Caliber (mm): 60
Mortar bomb type: WP
Maximum Effective Range, (m): 3 400
Length with fuze mortar bomb, (mm): 310
Total weight of mortar bomb, (kg): 1.560
Number of charges: 1 + 4 Increment charges
Payload: Pyrotechnical composition RP
Weight of pyrotechnical composition (WP), (kg): 0.140
Duration of smoke creation, (s): 60
Max. average pressure, Pmaxaver, (bar): 450
Fuze type: M-6N (or suitable)
Operational temperature range, ( °C): from minus 50 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
1 complete shell per carton
20 complete shell per carton: in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 570 x 530 x 270
Gross weight, (kg): 52
Case volume, (m3): 0.08
Class of explosion hazard: UN 0171, 1.2G
Note: The manufacturer can change the packing
