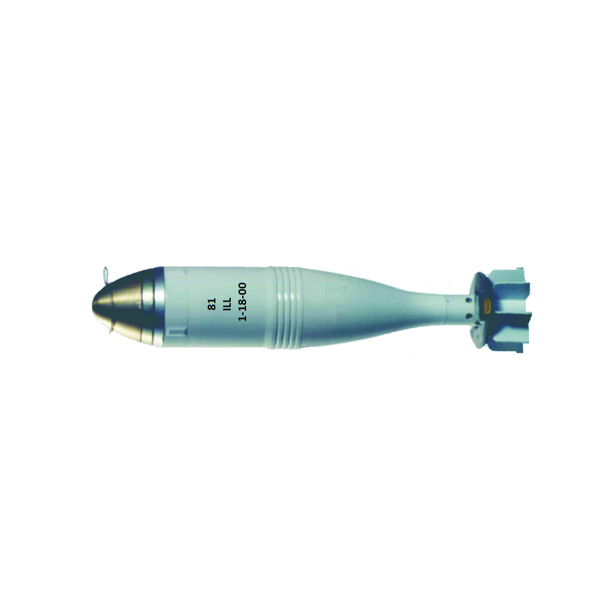

81 mm Illumination Mortar Bomb (ILL) For 81 mm Smooth-bore Mortars
MAIN TECHNICAL PARAMETERS
Caliber (mm): 80
Mortar bomb type: ILL
Maximum Effective Range, /1+4/(m): 3 650
Minimum Effective Range, /1+1/(m): 250
Length with fuze, (mm): 410
Weight (with fuze, w/out increments), (kg): 2,950
Propulsion system: Ignition cartridge ÷ 4 Increments
Illuminating intensity, (can): Min. 500 000
Illuminating burn time, (s): Min. 40
Stabilized descent speed, (m/s): 2.5
Max mean operating pressure in mortar (bars): 422
Fuze type (pyrotechnic time): TP M67 (or suitable)
Operational temperature range, ( °C): from minus 40 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
1 complete shell per carton
5 complete shell per carton: in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 540 x 480 x 160
Gross weight, (kg): 27
Case volume, (m3): 0.042
Class of explosion hazard: UN 0171, 1.2G
Note: The manufacturer can change the packing

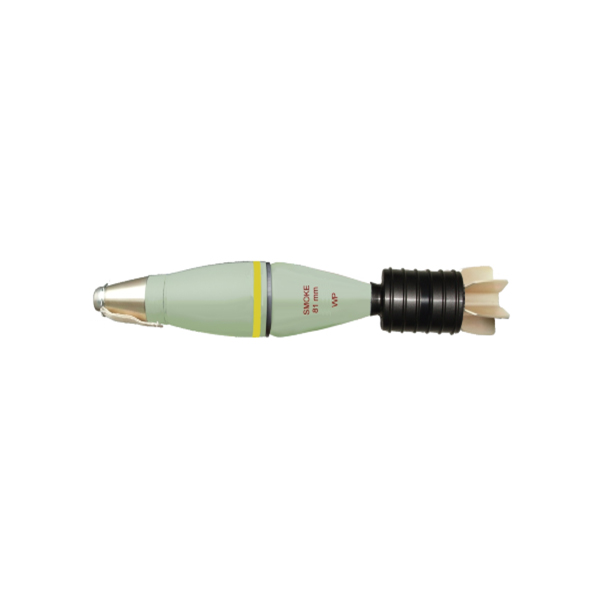

81 mm Smoke Mortar Bomb For 81 mm Smooth-bore Mortars M1, M29, L16A1/A2
MAIN TECHNICAL PARAMETERS
Caliber, (mm): 81
Mortar bomb type: SMK
Maximum Effective Range, (m): 4 335, 5 100, 5 750
Length of fuzed mortar bomb, (mm): 486
Weight of mortar bomb, (kg): 4.15
Material of body: Cast iron
Charge type: WP
Weight of explosive charge, (kg): 0.55
Number of propellant charges: 1 + 4, 1 +5, 1+6 Increment charges
Average muzzle velocity, (m/s): 241, 270, 294
Max. average pressure, Pmaxaver, (kgf/cm2): 450
Fuze type: Point Detonating: M-6N (or suitable)
Operational temperature range, ( °C): from minus 50 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
6 (six) mortar bombs: 1 (one) wooden case for transportation
Totally: 6 (six) mortar bombs in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 640 x 610 x 205
Gross weight, (kg): 42
Case volume, (m3): 0.079
*Fuzes and increment charges packed separately
Class of explosion hazard: UN 0321, 1.2E
Note: The manufacturer can change the packing
81 mm High-Explosive Mortar Bomb (HE) For 81 mm Smooth-bore Mortars
MAIN TECHNICAL PARAMETERS
Caliber, (mm): 81
Mortar bomb type: HE
Maximum Effective Range, (m): 4 335
Length of fuzed mortar bomb, (mm): 486
Weight of mortar bomb, (kg): 4.15
Material of body: Cast iron
Explosive filling type: TNT
Weight of explosive charge, (kg): 0.74
Number of propellant charges: 1 + 4 Increment charges
Average muzzle velocity, (m/s): 241
Max. average pressure, Pmaxaver, (kgf/cm2): 450
Fuze type: Point Detonating: M-6N (or suitable)
Operational temperature range, ( °C): from minus 50 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
6 (six) mortar bombs: 1 (one) wooden case for transportation
Totally: 6 (six) mortar bombs in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 640 x 600 x 205
Gross weight, (kg): 42
Case volume, (m3): 0.079
* Fuzes and increment charges packed separately
Class of explosion hazard: UN 0321, 1.2E
Note: The manufacturer can change the packing
82 mm O-823DU High-Explosive Mortar Bomb (HE) For 82 mm Smooth-bore Mortars
MAIN TECHNICAL PARAMETERS
Caliber (mm): 82
Mortar bomb type: HE
Maximum Effective Range, (m)
– with full variable charges: 3 180
– with long range charge: 4 255
Weight of mortar bomb with fuze, (kg): 3.1
Material of body: Cast iron
Explosive filling type: 0.4
Number of charges: 1 + 3 Increment charges
Average muzzle velocity, (m/s)
– with full variable charges: 211
– with long range charge: 255
Fuze type
PD, Distance Armed: M-6 (or suitable)
Operational temperature range, ( °C): from minus 50 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
10 (ten) mortar bombs: 1 (one) wooden case for transportation
Totally: 10 (ten) mortar bombs in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 535 x 528 x 255
Gross weight, (kg): 50
Case volume, (m3): 0.072
* Fuzes and increment charges: packed separately
Class of explosion hazard: UN 0321, 1.2E
Note: The manufacturer can change the packing

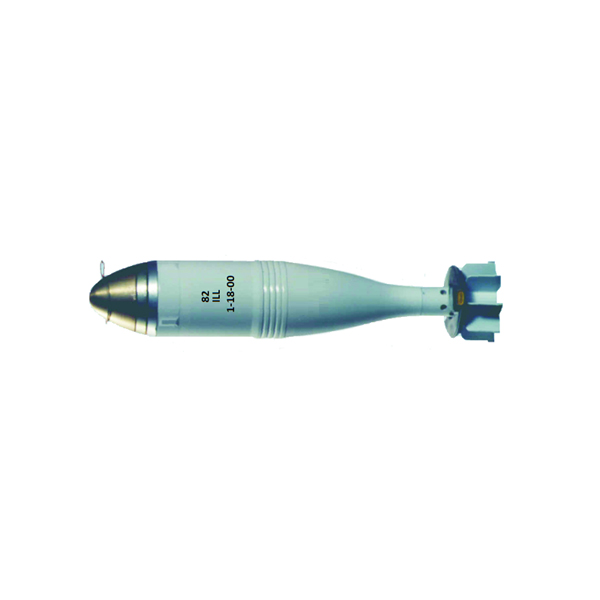

82 mm Illumination Mortar Bomb (ILL) For 82 mm Smooth-bore Mortars
MAIN TECHNICAL PARAMETERS
Caliber (mm): 80
Mortar bomb type: ILL
Maximum Effective Range, /0+4/(m): 2 950
Minimum Effective Range, /0+1/(m): 250
Length with fuze, (mm): 410
Weight (with fuze, w/out increments), (kg): 2,950
Propulsion system: Ignition cartridge ÷ 4 Increments
Illuminating intensity, (can): Min. 500 000
Illuminating burn time, (s): Min. 40
Stabilized descent speed, (m/s): 2.5
Max mean operating pressure in mortar (bars): 422
Fuze type (pyrotechnic time): TP M67 (or suitable)
Operational temperature range, ( °C): from minus 40 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
1 complete shell per carton
5 complete shell per carton: in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 540 x 480 x 160
Gross weight, (kg): 27
Case volume, (m3): 0.042
Class of explosion hazard: UN 0171, 1.2G
Note: The manufacturer can change the packing

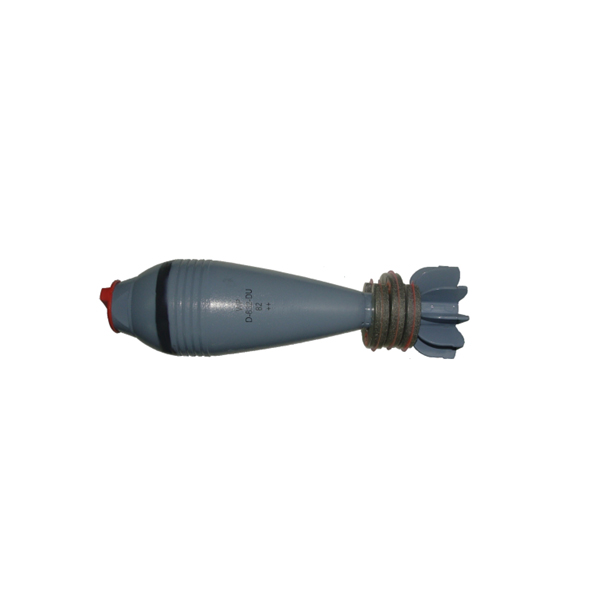

82 mm Smoke Mortar Bomb (WP) For 82 mm Smooth-bore Mortars
mod. 1937; 1941; 1943, 2B9 “VASILEK”, 2B14 “PODNOS” and M82
MAIN TECHNICAL PARAMETERS
Caliber (mm): 82
Mortar bomb type: WP
Maximum Effective Range, (m): 3 040
Weight of mortar bomb, (kg): 3.1
Charge type: Changeable propellant (1+3)
Material of body: Cast iron
Explosive filling type: TNT
Weight of explosive charge, (kg): 0.068
Smoke screening substance: WP
Weight of screening substance, (kg): 0.338
Average muzzle velocity at 3th charge, (m/s): 211
Max. average pressure, Pmaxaver, (kgf/cm2): 450
Fuze type
Point Detonating: M-5, M-6 (or suitable)
Operational temperature range, ( °C): from minus 50 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 10
PACKING
10 (ten) mortar bombs: 1 (one) wooden case for transportation
Totally: 10 (ten) mortar bombs in 1 (one) wooden box
Wooden case dimensions:
Overall, (mm): 538 x 535 x 282
Gross weight, (kg): 45
Case volume, (m3): 0.0812
* Fuzes and increment charges: packed separately
Class of explosion hazard: UN 0245, 1.3G
Note: The manufacturer can change the packing
