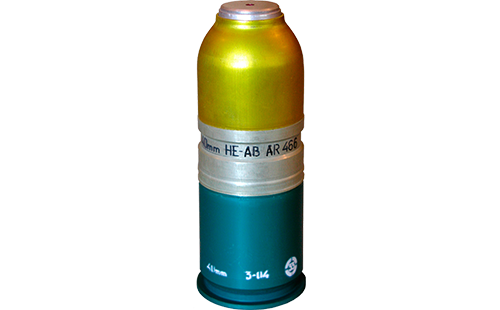

40x46mm Round AR 466M2-MV

The 40x46 mm Air Burst Bouncing HE Grenade AR 466 M2 is designed to provide effective action against enemy troops in open terrain or in light shelters at distance of up to 600 m.

At meeting the target the fuze initiates the ejecting charge and the grenade bounces upwards and bursts at height from 0,5m to 1,5m. The air-burst of the grenade provides 50% increased distribution of the splinters and increases their lethality. The grenade features Safe distance arming and Self-destruction back up.

Packaging

  • 84pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 48kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

The ammunition is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40x46mm

Fuze Type

  • Distance-Armed
  • Self-Destruct
  • Bouncing Air Burst

Technical specifications

  • Round Length: 122mm
  • Time of Self-Destruction: 14 - 19s
  • Operational Temperature min: -42°c
  • Operational Temperature max: +52°c
  • Arming Distance: 10 - 40m
  • Shelf Life: 10
  • Muzzle Velocity: 90m/s
  • Operation Range: 600m
  • Jump Height: 0,5 to 2,5



40x46mm Round AR406

The 40 x 46 mm High Explosive Grenade AR406 provides effective action against enemy troops in open terrain or in light shelters at distance of up to 400 m. The grenade is fitted with distance-armed, self-destruct fuze.

Packaging

  • 40pcs in Metal Box
  • 3pcs Metal Box in Wooden Case
  • 47kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

The ammunition is designed for use with the following grenade launchers:

  • M203 under-barrel grenade launcher mounted on
  • Colt M16 assault rifle
  • HK 69A1 under-barrel grenade launcher mounted on G3A3 assault rifle
  • ARCUS 40 UBGL under-barrel grenade launcher on KALASHNIKOV assault rifles AK-47 and AK-74
  • M79 grenade launcher
  • HK79 grenade pistol

The ammunition is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40x46mm

Fuze Type

  • VMG-K

Technical specifications

  • Round Length: 102.5mm
  • Safety Wire: 0
  • Muzzle Velocity: 76.5m/s
  • Time of Self-Destruction: 14 - 19s
  • Effective Radius: 6m
  • Case: Alluminum
  • Primer: kvm-3
  • Filling Type explosive: a-ix-1(rdx)
  • Propellant Type: nbpl-10-10
  • Shelf Life years: 10
  • Max Effective Range: 400m
  • Operational Temp min: -50°c
  • Operational Temp max: +50°c
  • explosivefilling: 42g
  • Weight of Round: 250g



40x46mm Round AR407 M1

The 40 x 46 mm Practice Grenade AR407TP is intended for practice firing at distance of up to 400 m. The projectile is inert and contains no explosive.

The ammunition is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Packaging

  • 84pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 38kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

Fire Specifications

  • caliber: 40x46mm

Technical specifications

  • Round Length: 102.5mm
  • Operational Temperature min: -42°c
  • Operational Temperature max: +52°c
  • Shelf Life: 10
  • Muzzle Velocity: 76m/s
  • Operation Range: 400m
  • Primer: percussion
  • Filling Type: inert mixture
  • Grenade Body: aluminum
  • Weight of Round: 250g



40x46mm Round AR408

The grenades are safe in storage, handling and operation and ensure the reliable performance of the grenade launchers in all weather conditions.

Packaging

  • 84pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 43kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

Fire Specifications

  • caliber: 40x46mm

Technical specifications

  • Round Length: 102.5mm
  • Operational Temperature min: -42°c
  • Operational Temperature max: +52°c
  • Shelf Life: 10
  • Muzzle Velocity: 76m/s
  • Operation Range: 400m
  • Weight of Round: 250g



40x46mm Round AR409 M2

The 40 x 46 mm Target Practice Marking Grenade AR409 TPM is intended for target practice firing with ground-marking effect at distance of up to 400 m. The grenade has live PD fuze and creates marking smoke at impact. The projectile is inert and contains no explosive.

Packaging

  • 84pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 38kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

The AR407 M2 have inert projectile ballistically matched to AR 406 HE Grenade.

AR407 M2 is Target-Practice Marking (with coloured dye).

The ammunition is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40x46mm

Fuze Type

  • PD-SD AR706

Technical specifications

  • Round Length: 102.5mm
  • Time of Self-Destruction: 14 - 19s
  • Operational Temperature min: -50°c
  • Operational Temperature max: +50°c
  • Arming Distance: 10 - 40m
  • Shelf Life: 10
  • Muzzle Velocity: 76m/s
  • Operation Range: 400m
  • Primer: percussion
  • Filling Type: inert mixture
  • Grenade Body: aluminum
  • Weight of Round: 250g





40x46mm Round AR433

The grenades are safe in storage, handling and operation and ensure the reliable performance of the grenade launchers in all weather conditions.

Packaging

  • 84pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 43kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

Fire Specifications

  • caliber: 40x46mm

Technical specifications

  • Round Length: 102.5mm
  • Operational Temperature min: -42°c
  • Operational Temperature max: +52°c
  • Shelf Life: 10
  • Muzzle Velocity: 76m/s
  • Operation Range: 400m
  • Weight of Round: 250g





40x46mm Round AR466

The 40x46 mm Air Burst Bouncing HE Grenade AR 466 provides effective action against enemy troops in open terrain or in light shelters at distance of up to 400 m.

At meeting the target the fuze initiates the ejecting charge and the grenade bounces upwards and bursts at height from 0,5m to 1,5m. The air-burst of the grenade provides 50% increased distribution of the splinters and increases their lethality. The grenade features Safe distance arming and Self-destruction back up.

Packaging

  • 84pcs in Air-Tight Sealed Metal Box
  • 3pcs Air-Tight Sealed Metal Box in Wooden Case
  • 48kg weight of each Wooden Case
  • 0.072cm3 volume of each Wooden Case
  • 860x380x220mm dimensions of each Wooden Case

The ammunition is safe in storage, handling and operation and ensures the reliable performance of the grenade launchers in all weather conditions.

Fire Specifications

  • caliber: 40x46mm

Fuze Type

  • Distance-Armed
  • Self-Destruct
  • Bouncing Air Burst

Technical specifications

  • Round Length: 115mm
  • Time of Self-Destruction: 14 - 19s
  • Operational Temperature min: -42°c
  • Operational Temperature max: +52°c
  • Arming Distance: 10 - 40m
  • Shelf Life: 10
  • Muzzle Velocity: 76m/s
  • Operation Range: 400m
  • Jump Height: 0,5 to 2,5
  • explosivefilling: 27g
  • Weight of Round: 280g
